BYO Modem – TP-Link VR400 v2 – Fibre to the Node/Building Setup

Default IP 192.168.1.1
Default Login Usernameadmin
Default Login Passwordpassword
WiFi Details802.11b/g/n 2.4GHz
802.11a/n/ac 5GHz
Ethernet Details1x 1000Mbps WAN/LAN port
3x 100Mbps LAN ports
CompatibilityAll NBN and Fixed Wireless for up to 1000 Mbps connection
Modem Emulator VR400 v2 Emulator
Modem Setup with Swoop
In most cases, your modem should automatically get configured with Swoop, because to make it easier for our customers we support both IPoE (Dynamic) and Flexible PPPoE connection for NBN services. As long as your modem is in either of those modes, it should just work (regardless of PPPoE username and password stored in your modem).

However, if automatic setup didn’t not work you, please follow below modem setup instructions.

STEP 1 – Find the Phone Socket

There are 2 types of Phone socket

  • Normal Phone Socket
  • Older Style Phone socket (Sometimes may need to buy a “Modular Telephone Adaptor Plug” if its missing)

Please note, FTTN/B does not require any filter.

STEP 2 – Connect the Modem to the Telephone Socket

One end of the phone cable goes to the telephone socket on the wall and other end goes to the DSL port (grey) of the modem.

Please note, it is recommended to use normal 1m long cable, longer cable can cause problems.

STEP 3 – Ensure you have “Sync

You can check via WAN/DSL light on modem (Solid Green)

STEP 4 – Connect a device to your modem

Ensure the modem is connected to a device such as laptop, tablet, or phone etc. via Ethernet or Wi-Fi.

Default Wi-Fi password is located on your modem sticker.

STEP 5 – Login to your modem

Now open any browser (Chrome, Edge or Safari) and type 192.168.1.1 and press enter.

Now you’ll be greeted with login screen, default username is admin, and the password is “password

STEP 6 – Setting up Connection

Click on the Advanced and then Operation Mode to ensure you are in “DSL Modem Router Mode

If you are in some other mode, please select “DSL Modem Router Mode” and click save. Mode will be changed after the modem restart.

Then click on Basic and Internet

Select the DSL Modulation Type as “VDSL” (Do not enable VLAN ID)

Swoop supports both IPoE and PPPoE authentication for all NBN services 🙂

Setup as IPoE (Dynamic)Setup as PPPoE

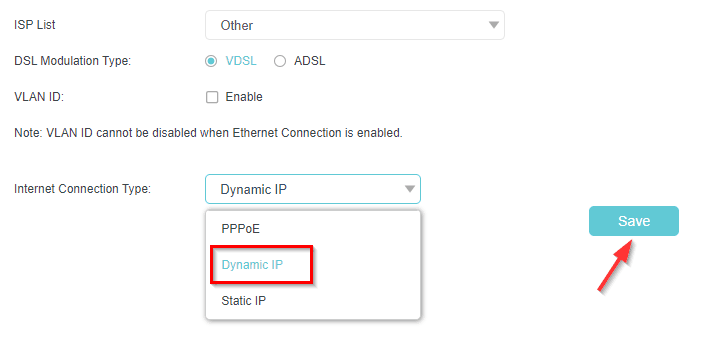

Select Internet Connection Type as “Dynamic IP” and click Save

Now modem will reboot and can take up to 5 minutes to setup

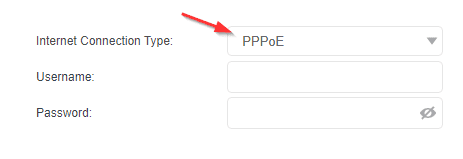

Select Internet Connection Type as “PPPoE”, type your internet username + password and click Save

Now modem will reboot and can take up to 5 minutes to setup



Physical Buttons

ButtonDescription
Wi-Fi On/Off buttonPress to turn both 2.4GHz and 5GHz Wi-Fi on or off.
ResetFactory Reset Pinhole
Power buttonToggles the power on and off.
